CDU

Coolant Distribution Unit

WayCool Cooling Distribution Units deliver precision engineered cooling for modern data centers deploying direct liquid cooling. Designed for uptime, scalability,
and serviceability, the CDU series bridges facility chilled water infrastructure with
server-level liquid cooling loops in both new construction and retrofit installations.

Request a Quote

CDU

Coolant Distribution Unit

WayCool Cooling Distribution Units deliver precision engineered cooling for modern data centers deploying direct liquid cooling. Designed for uptime, scalability, and serviceability, the CDU series bridges facility chilled water infrastructure with server-level liquid cooling loops in both new construction and retrofit installations.
Request a Quote

Applications

Data Center

CDU

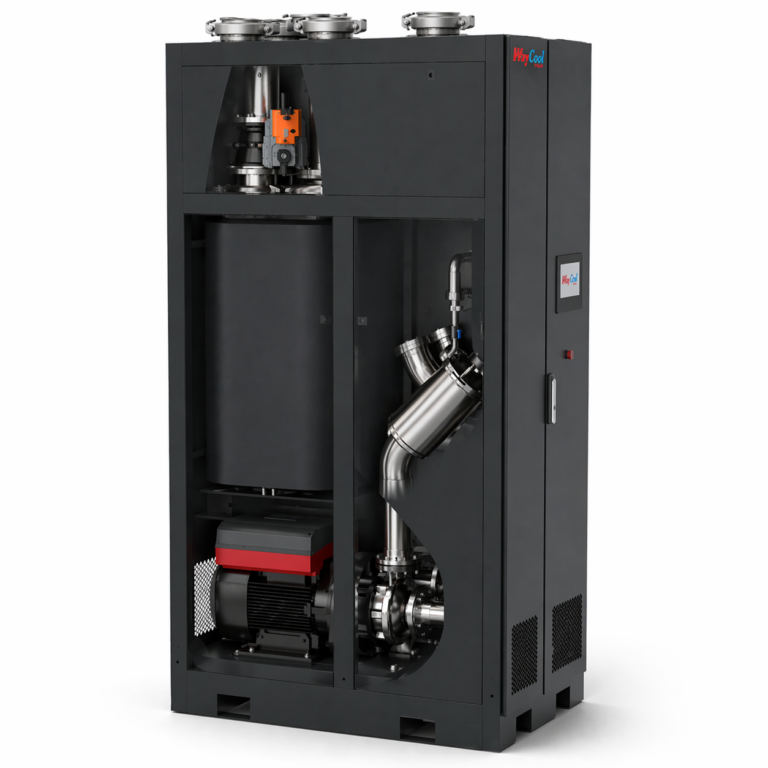

CDU ——1

Optimized Redundancy Architecture

WayCool CDUs provide redundant sensors to ensure reliable pump and valve control, and the controls system is powered from dual sources. Redundancy for pumps, filters, and heat exchangers are delivered at the system level rather than within the unit itself.

Redundancy Design Principles

  • First Cost Savings, Lower Operating Cost & Maintenance Cost
  • Units operate in load-sharing mode to equalize wear across the fleet
  • Hot-swapable pumps and filters for zero-downtime replacement
  • >10% improved pump efficiency over 2N designs

Specifications Table

Model W x L x H Pump Normal Capacity Operating Condition Nominal TCS Flow Rate Nomial FWS Flow Rate Nomial FWS Flow Rate Max External Pressure
mm Inch Qty Kw LPM GPM LPM GPM C F KPA PSI
CDU-6 1000 x1500 x 2300 40” x 60” x 91” 2 3125 1.2 LPM/ KW 3750 991 3742 989 6 10.8 414 60
2 2500 1.5 LPM/ KW 3750 991 3647 963 5 9 414 60
2 2150 1.2 LPM/ KW (HIGH PRESSURE) 2580 682 3750 991 3 5.4 621 90
2 1750 1.5 LPM/ KW (HIGH PRESSURE) 2580 682 3665 968 2.5 4.5 621 90

Downloads

1850 KB

Download
