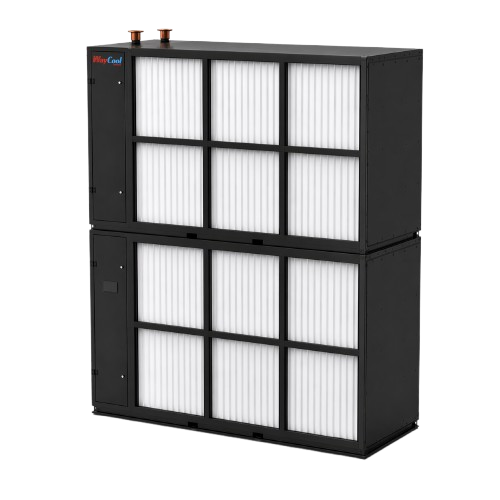

FCW

Fan Coil Wall

WayCool Fan Coil Walls provide reliable, energy efficient cooling engineered for modern data centers. Designed for uptime, serviceability, and performance, these units integrate smoothly into both new construction and retrofit installations.

Request a Quote

FCW

Fan Coil Wall

WayCool Fan Coil Walls provide reliable, energy efficient cooling engineered for modern data centers. Designed for uptime, serviceability, and performance, these units integrate smoothly into both new construction and retrofit installations.

Request a Quote

Applications

Data Center

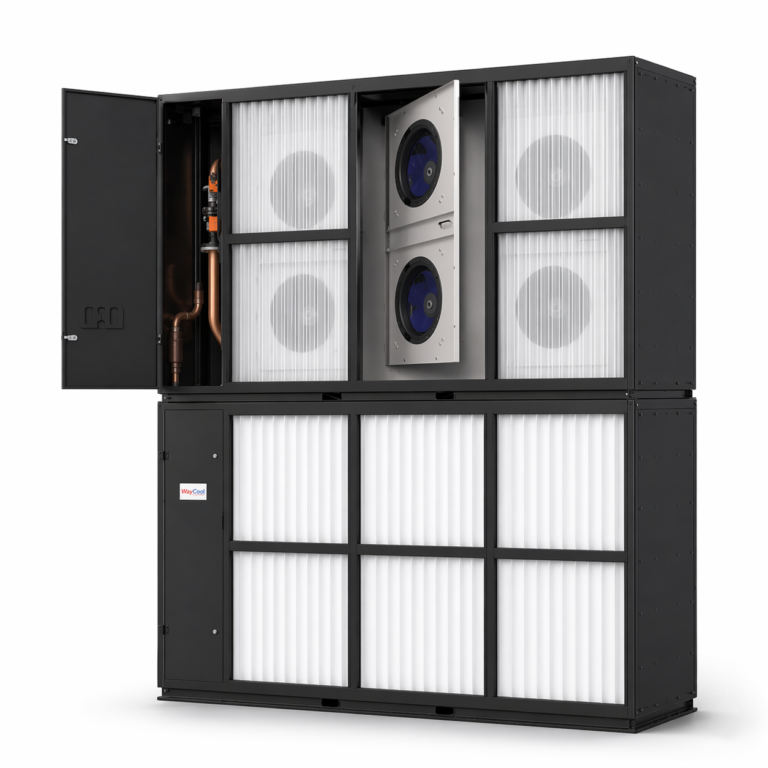

Fan Coil Wall Features

FCW

Configurable Coil Design

WayCool Fan Coil Walls are designed with flexibility at their core. Every FCW coil is selected to optimize for the customer specific cooling requirements.

Tailored coil design ensures precise alignment with your data center’s thermal load, energy usage and total cost of ownership.

Coil Configuration Options

  • Row quantity adjustable to match the required cooling capacity
  • Fin spacing optimized for airflow resistance vs. heat transfer trade-offs-
  • Copper tube/aluminum fin construction
  • Multiple circuit configurations for chilled water or glycol systems

Specifications Table

Model W x L x H Airflow Range Cooling Capacity Range Maximum TSP @ Peak Airflow Fan Maximum Fluid Flow Rate
mm ft m³/h CFM KW Pa Inch w.g. Qty m³/h GPM
FCW-1210 3050 x1520 x 3660 12' x 10' 63-85k 37-50k 290-400 423 1.7 4 45.4 200
FCW-1211 3355 x 1520 x 3660 12' x 11' 70-107k 41-63k 325-500 622 2.5 6 57.7 254
FCW-1212 3660 x 1520 x 3660 12' x 12' 76-119k 45-70k 355-555 548 2.2 6 57.7 254
FCW-1410 3050 x 1520 x 4300 14' x 10' 75-115k 44-68k 350-540 548 2.2 8 57.7 254
FCW-1411 3355 x 1520 x 4300 14' x 11' 83-129k 49-76k 390-600 448 1.8 8 81.8 360
FCW-1412 3660 x 1520x 4300 14' x 12' 92-142k 54-84k 430-665 622 2.2 12 81.8 360
