M-DP

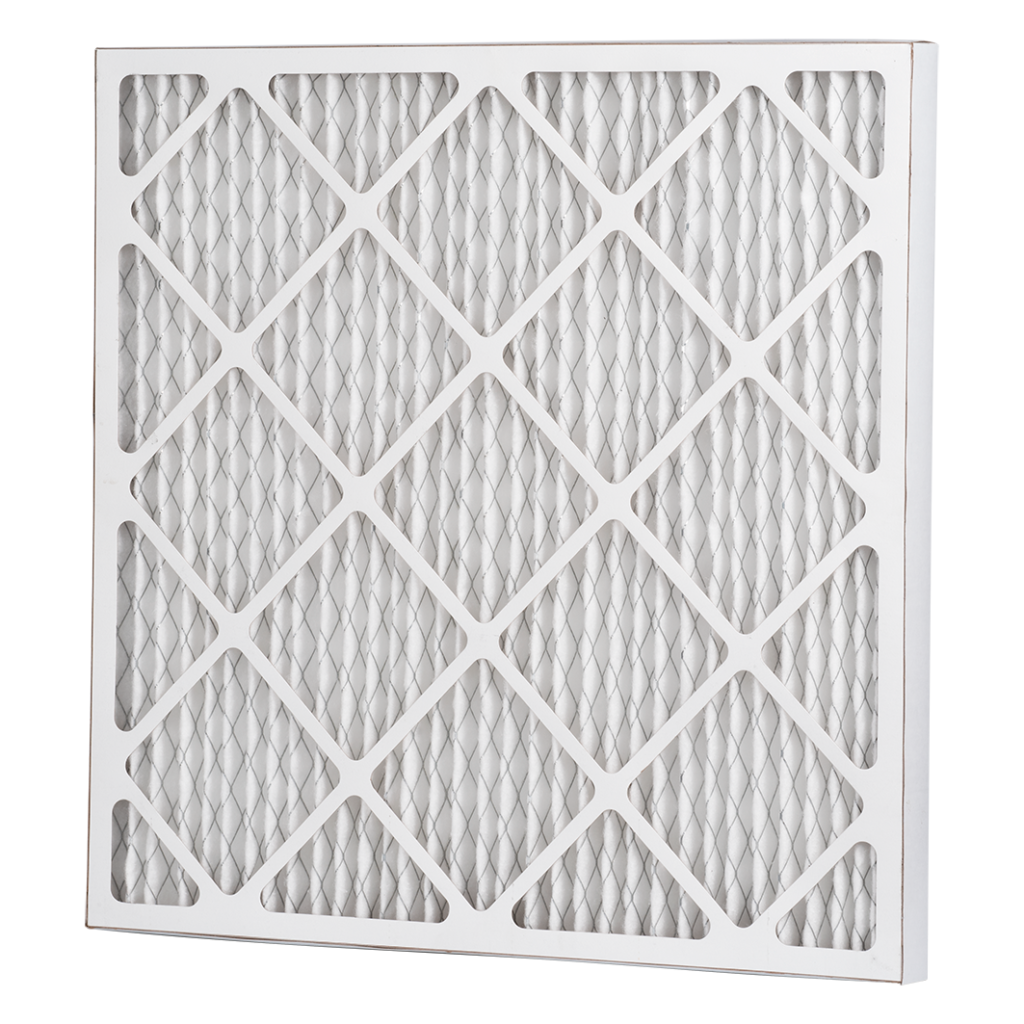

Disposable Panel Filter

M-DP

Disposable Panel Filter

Applications

Commercial

Semiconductor

Materials

Frame	Aluminum alloy / Stainless steel / Galvanized steel sheet (GI)
Thickness	10mm / 21mm / 23mm / 46mm / 96mm
Filter Material	High-quality polyester synthetic fiber

Applicable Conditions

Maximum temperature

70°C (158°F)

Specifications Table

Dimensions W x H x D		Airflow						DP30			DP20			DP10
Dimensions W x H x D		Airflow						Pleat Count	Filter Paper Area		Pleat Count	Filter Paper Area		Pleat Count	Filter Paper Area
(mm)	(Inch)	(m³/h)			(CFM)			(Pleats)	(m²)	(ft)	(Pleats)	(m²)	(ft)	(Pleats)	(m²)	(ft)
289 x 594 x 22	11×23×1	1,020	1,700	—	600	1000	—	14	0.37	4	—	—	—	—	—	—
594 x 594 x 22	23×23×1	2,040	3,400	—	1200	2000	—	28	0.74	8	—	—	—	—	—	—
289 x 594 x 44	11×23×2	1,020	1,700	2,125	600	1000	1250	14	0.73	8	11	0.58	6	7	0.37	4
392 x 492 x 44	15×19×2	1,050	1,730	2,200	620	1020	1290	18	0.78	8	14	0.61	7	10	0.44	5
390 x 594 x 44	15×23×2	1,270	2,090	2,660	750	1230	1560	18	0.95	10	14	0.74	8	10	0.53	6
492 x 492 x 44	19×19×2	1,445	2,380	2,980	850	1400	1750	23	1.01	11	17	0.74	8	12	0.52	6
492 x 594 x 44	19×23×2	1,700	2,800	3,570	1000	1650	2100	23	1.21	13	17	0.89	10	12	0.63	7
594 x 594 x 44	23×23×2	2,040	3,400	4,250	1200	2000	2500	28	1.47	16	22	1.15	12	15	0.79	9
289 x 594 x 95	11×23×4	1,020	1,700	2,125	600	1000	1250	10	1.13	12	8	0.91	10	7	0.79	9
441 x 492 x 95	17×19×4	1,150	1,900	2,400	680	1120	1410	19	1.77	19	14	1.31	14	10	0.93	10
492 x 594 x 95	19×23×4	1,700	2,800	3,570	1000	1650	2100	23	2.59	28	17	1.91	21	12	1.35	15
594 x 594 x 95	23×23×4	2,040	3,400	4,250	1200	2000	2500	21	2.37	26	18	2.03	22	15	1.7	18
620 x 620 x 95	24×24×4	2,100	3,460	4,400	1240	2040	2590	22	2.59	28	19	2.24	24	16	1.89	20

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
