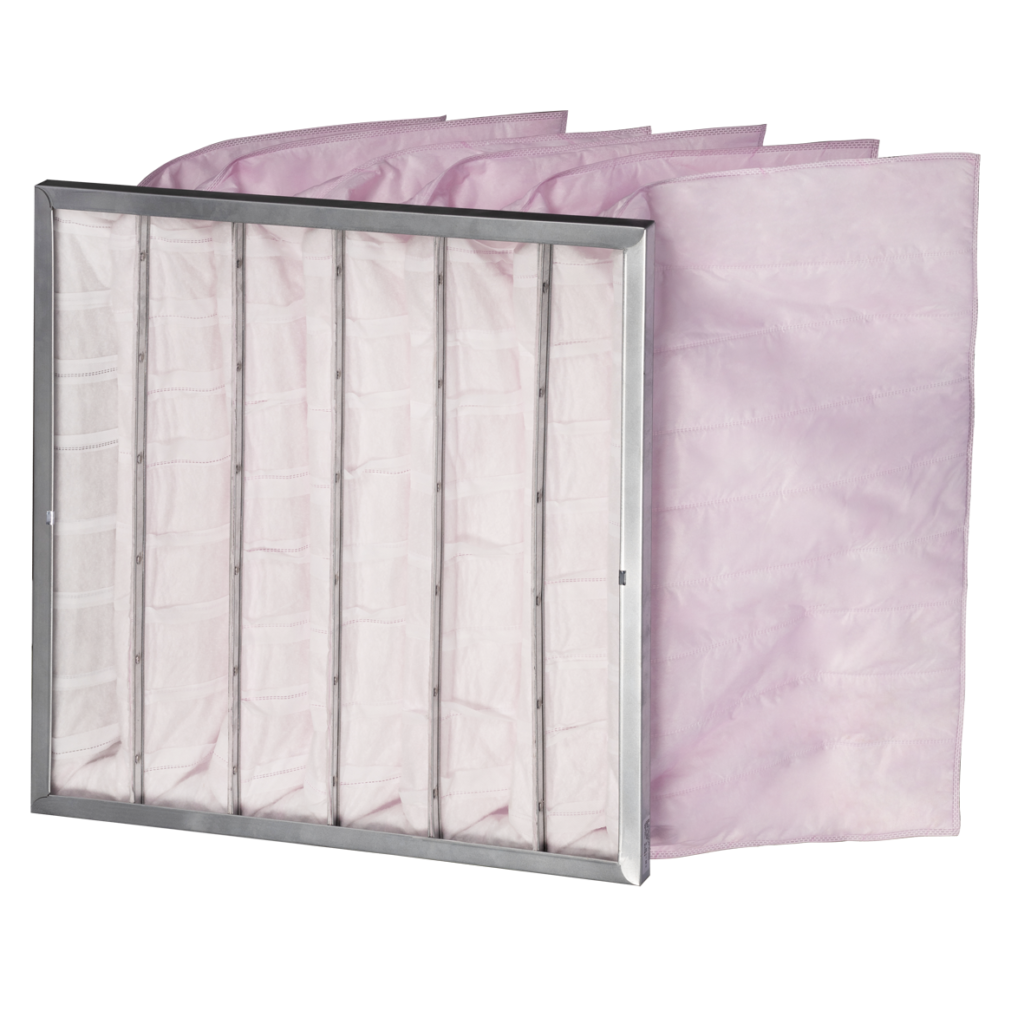

| Frame | Double-layer U-shaped aluminum alloy / Stainless steel / Galvanized iron sheet (GI) |
| Thickness | 20mm / 21mm / 26mm / 47mm |
| Filter Material | Synthetic fiber |
| Connection Angles | Sturdy and high-temperature resistant ABS plastic corner / Aluminum corner |
| Reinforcement Support | Galvanized steel strip |
| Maximum temperature | 60°C (140°F) |
| Dimensions W x H x D | Pocket Quantity | Airflow | Rated Initial Pressure Drop | Recommended Final Pressure Drop | ||||||||||||
| M5 | M6 | F7 | F8 | F9 | F5 ~ F9 | |||||||||||
| (inch) | (mm) | (pcs) | (m³/h) | (CFM) | (Pa) | (in. w.g.) | (Pa) | (in. w.g.) | (Pa) | (in. w.g.) | (Pa) | (in. w.g.) | (Pa) | (in. w.g.) | (Pa) | (in. w.g.) |
| 24 x 24 x 25 | 592 x 592 x 635 | 8 | 3,400 | 2,001 | 50 | 0.20 | 55 | 0.22 | 80 | 0.32 | 85 | 0.34 | 110 | 0.44 | 450 | 1.81 |
| 20 x 24 x 25 | 490 x 592 x 635 | 6 | 2,850 | 1,678 | 50 | 0.20 | 55 | 0.22 | 80 | 0.32 | 85 | 0.34 | 110 | 0.44 | 450 | 1.81 |
| 20 x 20 x 25 | 490 x 490 x 635 | 5 | 2,300 | 1,354 | 50 | 0.20 | 55 | 0.22 | 80 | 0.32 | 85 | 0.34 | 110 | 0.44 | 450 | 1.81 |
| 12 x 24 x 25 | 287 x 592 x 635 | 4 | 1,700 | 1,001 | 50 | 0.20 | 55 | 0.22 | 80 | 0.32 | 85 | 0.34 | 110 | 0.44 | 450 | 1.81 |
| 24 x 24 x 15 | 592 x 592 x 381 | 8 | 3,400 | 2,001 | 65 | 0.28 | 70 | 0.28 | 100 | 0.40 | 115 | 0.46 | 135 | 0.54 | 450 | 1.81 |
| 20 x 24 x 15 | 490 x 592 x 381 | 6 | 2,850 | 1,678 | 65 | 0.28 | 70 | 0.28 | 100 | 0.40 | 115 | 0.46 | 135 | 0.54 | 450 | 1.81 |
| 20 x 20 x 15 | 490 x 490 x 381 | 5 | 2,300 | 1,354 | 65 | 0.28 | 70 | 0.28 | 100 | 0.40 | 115 | 0.46 | 135 | 0.54 | 450 | 1.81 |
| 12 x 24 x 15 | 287 x 592 x 381 | 4 | 1,700 | 1,001 | 65 | 0.28 | 70 | 0.28 | 100 | 0.40 | 115 | 0.46 | 135 | 0.54 | 450 | 1.81 |
Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
