M-HIH

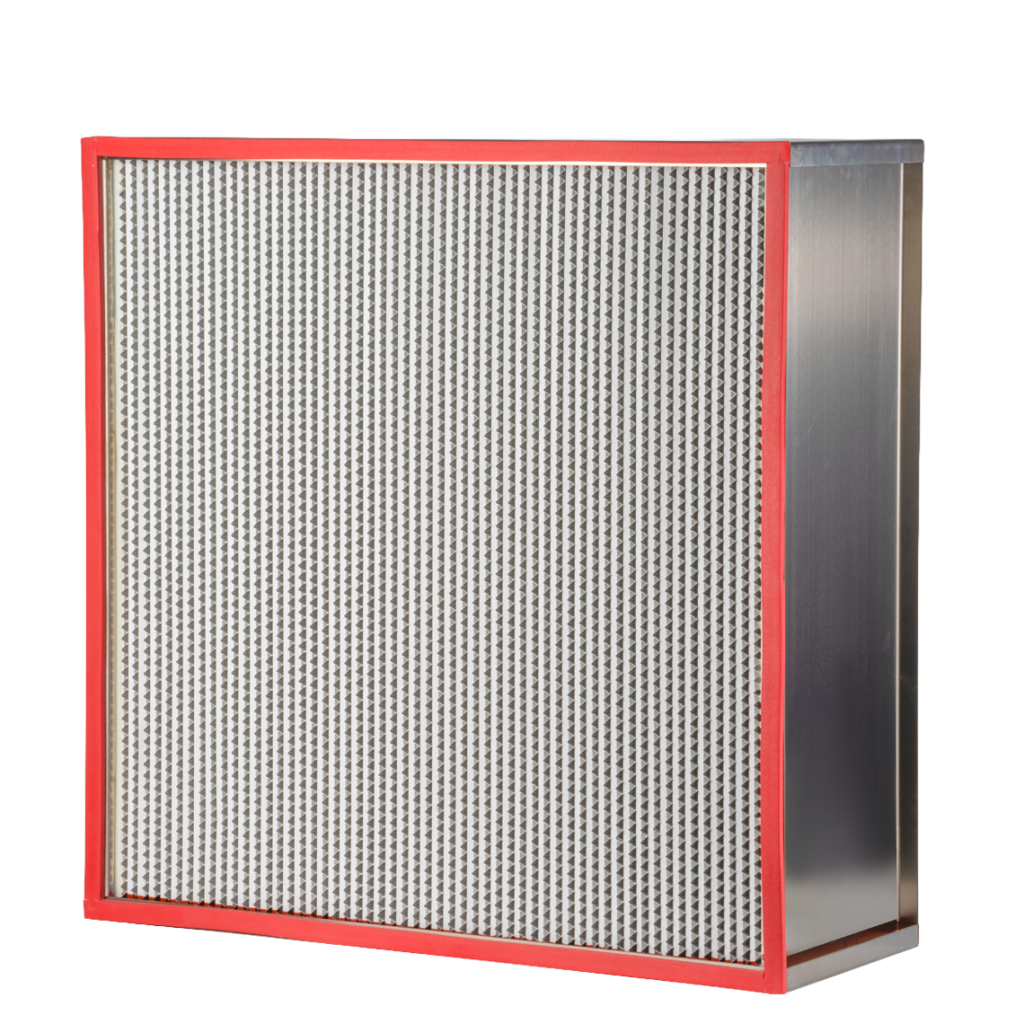

High Efficiency Mini-Pleated Air Filter (High Temperature)

Aluminum partitions with frames available in non-flanged, single- flanged, and double-flanged options, with a flange thickness of 20mm
Utilizing ultra-fine fiberglass filter media
Designed for high-temperature resistance, up to 250°C (482°F)
Imported sealing glue ensures consistent performance

M-HIH

High Efficiency Mini-Pleated Air Filter (High Temperature)

Aluminum partitions with frames available in non-flanged, single- flanged, and double-flanged options, with a flange thickness of 20mm
Utilizing ultra-fine fiberglass filter media
Designed for high-temperature resistance, up to 250°C (482°F)
Imported sealing glue ensures consistent performance

Applications

Commercial

Healthcare

Materials

Frame	Galvanized steel sheet / Aluminum sheet / Stainless steel sheet
Thickness	80mm / 150mm / 220mm / 292mm
Filter material	Water-resistant fiberglass
Separator	Aluminum foil
Gasket	High-temperature resistant sealing glue
Faceguard	High-temperature resistant sealing gaskets

Operating Conditions

Maximum temperature

250°C (482°F)

Specifications Table

Standard Air FLow

Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Separator	Flange	Airflow (m³/h)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) (H13)	Rated Initial Pressure Drop (Pa) (H14)	Recommended Final Pressure Drop (Pa)
12 x 24 x 3	305 x 610 x 80	Aluminum	None	200	0.36	249	280	Initial pressure drop 2 to 2.5 times
24 x 24 x 3	610 x 610 x 80	Aluminum	None	420	0.36	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 6	305 x 610 x 150	Aluminum	None	420	0.77	249	280	Initial pressure drop 2 to 2.5 times
24 x 24 x 6	610 x 610 x 150	Aluminum	None	900	0.77	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 9	305 x 610 x 220	Aluminum	None	650	1.2	249	280	Initial pressure drop 2 to 2.5 times
24 x 24 x 9	610 x 610 x 220	Aluminum	None	1,400	1.2	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 12	305 x 610 x 292	Aluminum	None	860	1.6	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 12	610 x 610 x 292	Aluminum	None	1,860	1.6	249	280	Initial pressure drop 2 to 2.5 times
Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Separator	Flange	Airflow (m³/h)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) (H13)	Rated Initial Pressure Drop (Pa) (H14)	Recommended Final Pressure Drop (Pa)

High Air Flow

Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Separator	Flange	Airflow (m³/h)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) (H13)	Rated Initial Pressure Drop (Pa) (H14)	Recommended Final Pressure Drop (Pa)
12 x 24 x 6	305 x 610 x 150	Aluminum	None	550	1	249	280	Initial pressure drop 2 to 2.5 times
24 x 24 x 6	610 x 610 x 150	Aluminum	None	1,170	1	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 9	305 x 610 x 220	Aluminum	None	850	1.55	249	280	Initial pressure drop 2 to 2.5 times
24 x 24 x 9	610 x 610 x 220	Aluminum	None	1,820	1.55	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 12	305 x 610 x 292	Aluminum	None	1,120	2	249	280	Initial pressure drop 2 to 2.5 times
12 x 24 x 12	610 x 610 x 292	Aluminum	None	2,400	2	249	280	Initial pressure drop 2 to 2.5 times
Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Separator	Flange	Airflow (m³/h)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) (H13)	Rated Initial Pressure Drop (Pa) (H14)	Recommended Final Pressure Drop (Pa)

High Air Flow & Low Pressure Drop

Dimensions W x H x D	Separator	Flange	Airflow	Face Velocity	Rated Initial Pressure Drop (H13)	Rated Initial Pressure Drop (H14)	Recommended Final Pressure Drop
(mm)			(CFM)	(FPM)	0	0	(in.w.g.)
305 x 610 x 292	Aluminum	None	824	492	92	10	Initial pressure drop 1.84 – 2.30
610 x 305 x 292	Aluminum	None	824	492	92	10	Initial pressure drop 1.84 – 2.31
610 x 610 x 292	Aluminum	None	1,766	492	92	10	Initial pressure drop 1.84 – 2.32
Dimensions W x H x D	Separator	Flange	Airflow	Face Velocity	Rated Initial Pressure Drop (H13)	Rated Initial Pressure Drop (H14)	Recommended Final Pressure Drop

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request.
