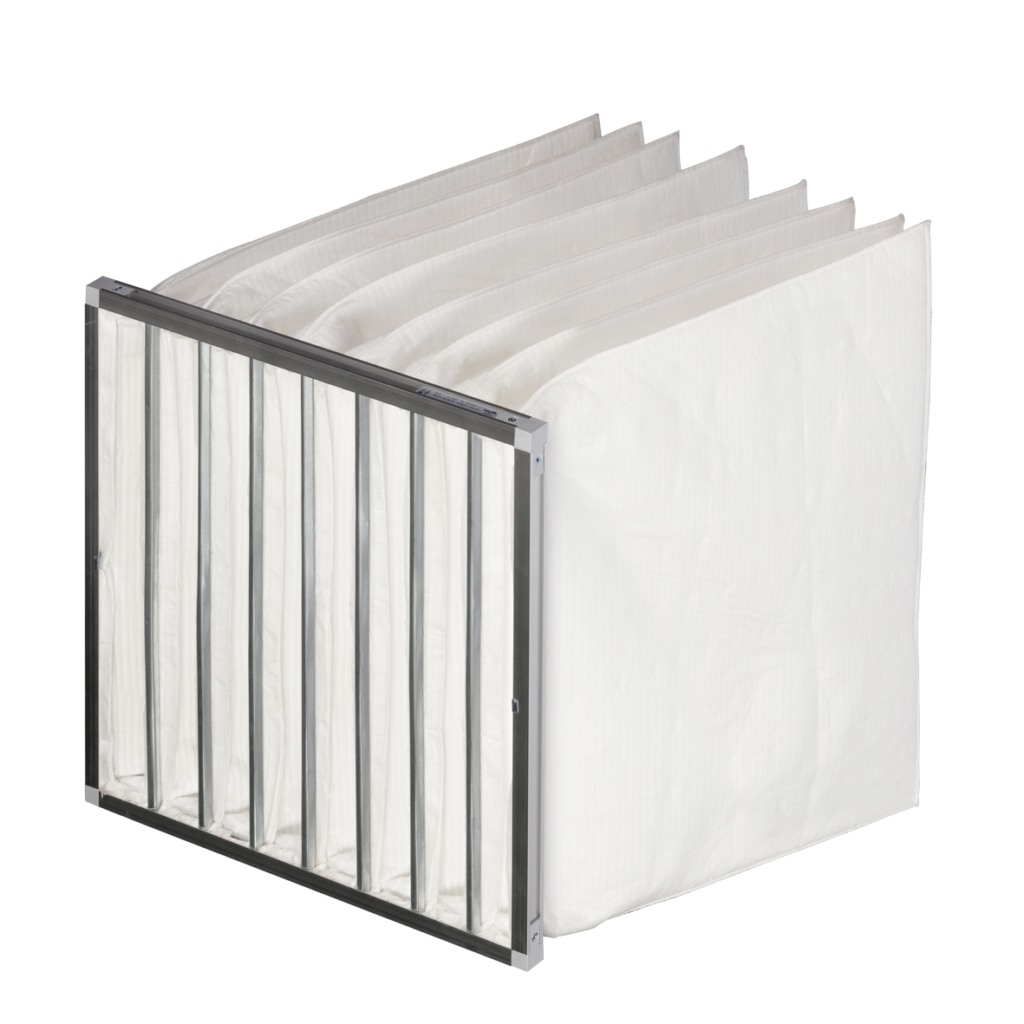

M-HPACK

High-Capacity Pocket Filter

  • Long service life and high dust-holding capacity are ensured through special processing techniques that create uniform and sturdy fibers
  • Consistently stable efficiency and resistance levels Robust leak-proof frame structure, utilizing a double-layer U-shaped aluminum alloy outer frame
  • Ultrasonic seamless bonding
  • High-quality, fluffy multilayer imported synthetic fiber filter material
Request a Quote

M-HPACK

High-Capacity Pocket Filter

  • Long service life and high dust-holding capacity are ensured through special processing techniques that create uniform and sturdy fibers
  • Consistently stable efficiency and resistance levels Robust leak-proof frame structure, utilizing a double-layer U-shaped aluminum alloy outer frame
  • Ultrasonic seamless bonding
  • High-quality, fluffy multilayer imported synthetic fiber filter material
Request a Quote

Applications

Commercial

Materials

Frame Double-layer U-shaped aluminum alloy / Galvanized steel sheet (GI)
Thickness 20mm / 21mm / 26mm / 47mm
Filter Material High-quality white polyester synthetic fiber
Connection Angles Sturdy and high-temperature resistant ABS plastic corner / Aluminum corner
Reinforcement Support Galvanized iron, adjacent reinforcement ribs for special structural locking

Applicable Conditions

Maximum temperature -20~60°C, transitory temperature resistance <100

Specifications Table

Frame Double-layer U-shaped aluminum alloy / Galvanized steel sheet (GI)
Thickness 20mm / 21mm / 26mm / 47mm
Filter Material High-quality white polyester synthetic fiber
Connection Angles Sturdy and high-temperature resistant ABS plastic corner / Aluminum corner
Reinforcement Support Galvanized iron, adjacent reinforcement ribs for special structural locking

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
