M-MIH

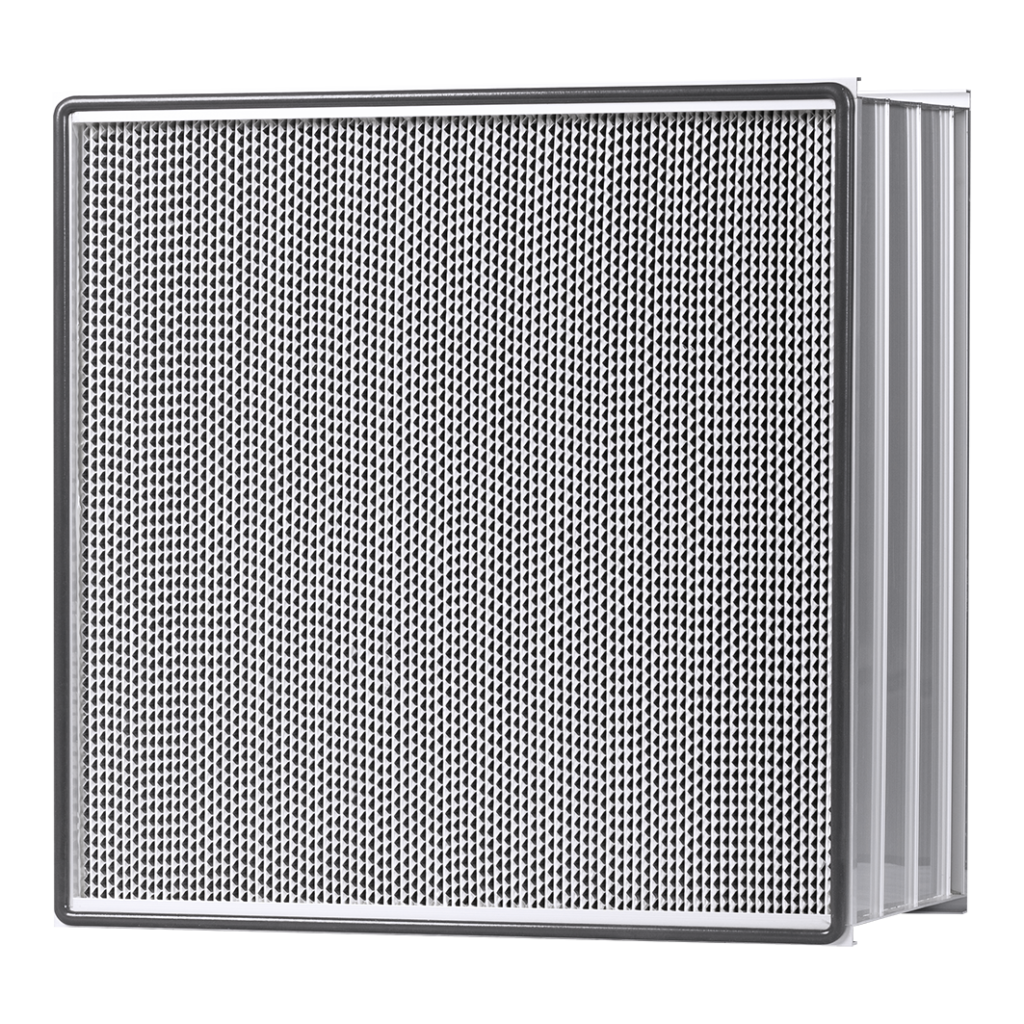

Medium Efficiency With Separator Air Filter
(High Temperature Resistance)

  • Aluminum partitions with frames available in non-flanged, single- flanged, and double-flanged options, with a flange thickness of 20mm
  • Utilizing ultra-fine fiberglass filter media
  • Designed for high-temperature resistance, up to 250°C (482°F)
  • Imported sealing glue ensures consistent performance
Request a Quote

M-MIH

Medium Efficiency With Separator Air Filter
(High Temperature Resistance)

  • Aluminum partitions with frames available in non-flanged, single- flanged, and double-flanged options, with a flange thickness of 20mm
  • Utilizing ultra-fine fiberglass filter media
  • Designed for high-temperature resistance, up to 250°C (482°F)
  • Imported sealing glue ensures consistent performance
Request a Quote

Applications

Commercial

Materials

Frame Galvanized steel sheet / Aluminum sheet / Stainless steel sheet
Thickness 80mm / 150mm / 220mm / 292mm
Filter Material Water-resistant fiberglass
Gasket High-temperature resistant sealing glue
Separator Aluminum foil
Material of Sealing Gaskets High-temperature resistant sealing gaskets

Applicable Conditions

Maximum temperature 250°C (482°F)

Specifications Table

Dimensions W x H x D Pleated Flange Airflow Face Velocity Rated Initial Pressure Drop Recommended Final Pressure Drop
M6 F7 F8 F9
(Inch) (mm) (m³/h) (CFM) (m/s) (FPM) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.)
12 x 24 x 3 305 x 610 x 80 Aluminum None 400 235 0.6 118 90 0.36 130 0.52 140 0.56 150 0.60 300 1.20
24 x 24 x 3 610 x 610 x 80 800 471 0.6 118 90 0.36 130 0.52 140 0.56 150 0.60
12 x 24 x 6 305 x 610 x 150 650 382 1.2 236 90 0.36 130 0.52 140 0.56 150 0.60
24 x 24 x 6 610 x 610 x 150 1,400 824 1.2 236 90 0.36 130 0.52 140 0.56 150 0.60
12 x 24 x 9 305 x 610 x 220 860 506 1.6 315 90 0.36 130 0.52 140 0.56 150 0.60
24 x 24 x 9 610 x 610 x 220 1,860 1,095 1.6 315 90 0.36 130 0.52 140 0.56 150 0.60
12 x 24 x 12 305 x 610 x 292 1,400 824 2.5 492 90 0.36 130 0.52 140 0.56 150 0.60
24 x 24 x 12 610 x 610 x 292 3,000 1765 2.5 492 90 0.36 130 0.52 140 0.56 150 0.60

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
