M-MV

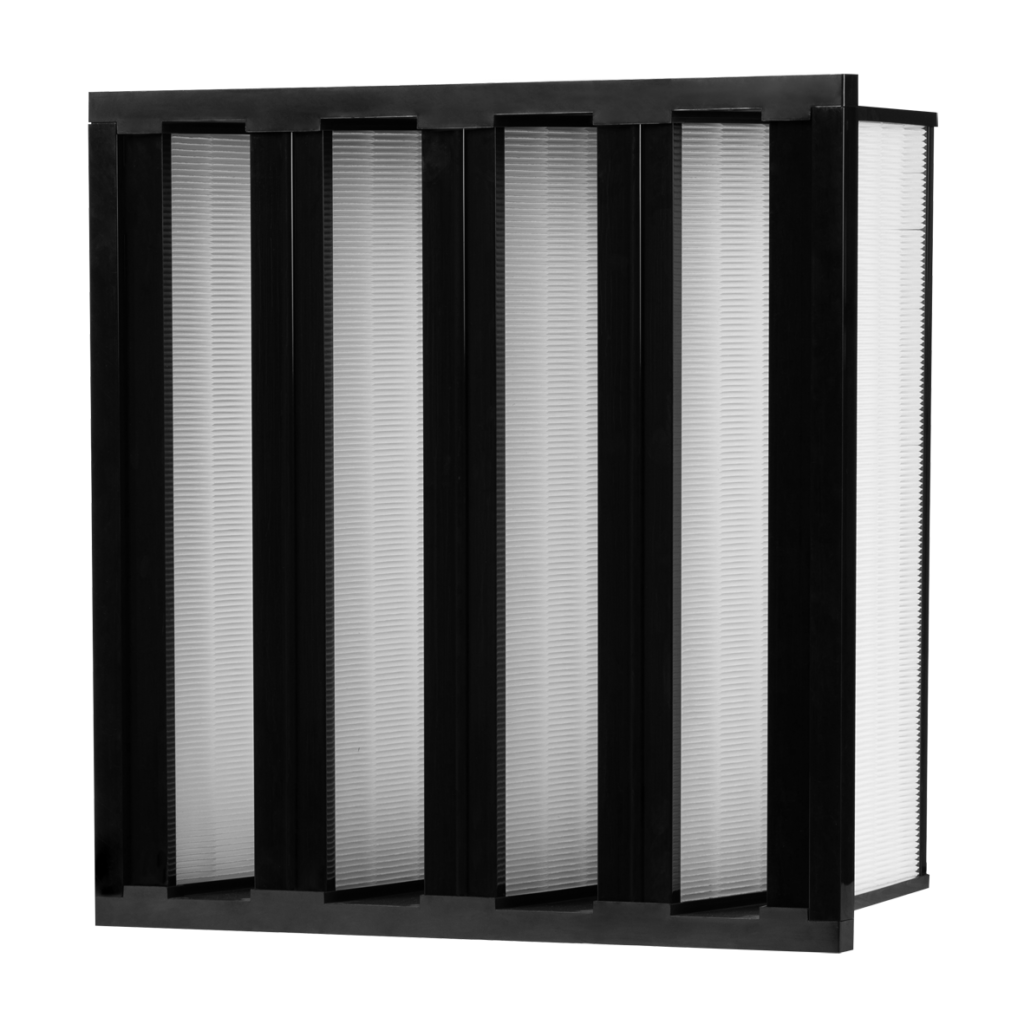

Medium Efficiency V-Shaped Mini-Pleated Air Filter

V-shaped low-pressure drop filter design
No partition design utilizes fiberglass filter paper
High dust holding capacity for long service life
Sturdy construction to ensure excellent performance under turbulent conditions
Available in single-flange or no-flange options
The polypropylene frame can be fully incinerated for disposal

M-MV

Medium Efficiency V-Shaped Mini-Pleated Air Filter

V-shaped low-pressure drop filter design
No partition design utilizes fiberglass filter paper
High dust holding capacity for long service life
Sturdy construction to ensure excellent performance under turbulent conditions
Available in single-flange or no-flange options
The polypropylene frame can be fully incinerated for disposal

Applications

Commercial

Materials

Frame	Plastic frame / Galvanized steel sheet / Aluminum sheet
Thickness	292mm
Filter Material	Water-resistant fiberglass
Separator	Hot melt adhesive
Gasket	Polyurethane

Applicable Conditions

Maximum temperature

70°C (158°F)

Specifications Table

Dimensions W x H x D		Filter Block	Flange	Airflow		Rated Initial Pressure Drop								Recommended Final Pressure Drop
Dimensions W x H x D		Filter Block	Flange	Airflow		M6		F7		F8		F9		Recommended Final Pressure Drop
(Inch)	(mm)	(V)	(Material)	(m³/h)	(CFM)	(Pa)	(in. w.g.)	(Pa)	(in. w.g.)	(Pa)	(in. w.g.)	(Pa)	(in. w.g.)	(Pa)	(in. w.g.)
12 x 24 x 12	287 x 592 x 292	2V	Single flange (ABS)	1,700	1001	65	0.26	85	0.34	105	0.42	130	0.52	450	1.81
24 x 12 x 12	592 x 287 x 292	4V		1,700	1001	65	0.26	85	0.34	105	0.42	130	0.52	450	1.81
24 x 20 x 12	592 x 490 x 292	4V		2,800	1648	65	0.26	85	0.34	105	0.42	130	0.52	450	1.81
24 x 24 x 12	592 x 592 x 292	4V		3,400	2001	65	0.26	85	0.34	105	0.42	130	0.52	450	1.81

Remark:
1. Initial resistance performance tolerance is ±15%
