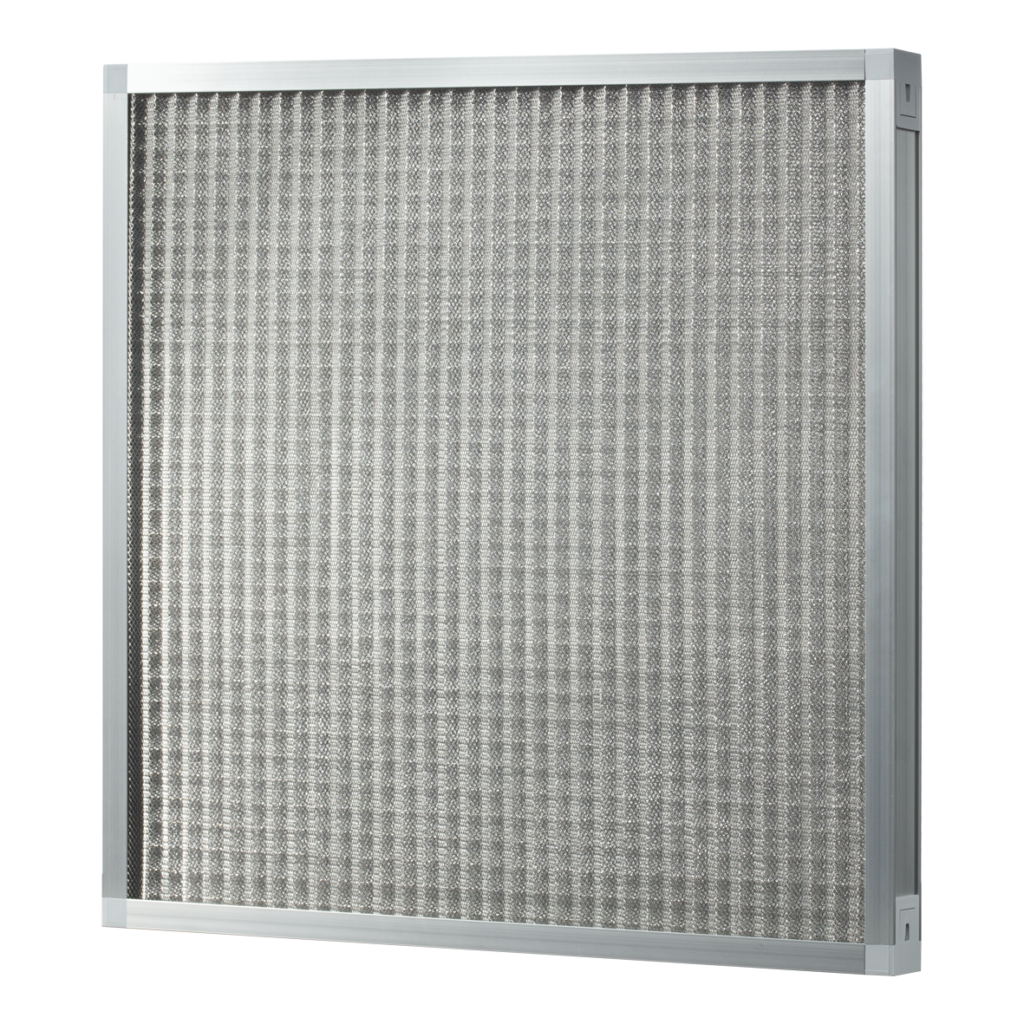

| Frame | Aluminum alloy frame / Galvanized frame / Stainless steel |
| Thickness | 10mm / 21mm / 23mm / 46mm / 96mm |
| Filter Material | High-strength aluminum mesh / Stainless steel mesh |
| Connection Angles | Sturdy and high-temperature resistant ABS plastic corner / Aluminum corner |
| Reinforcement Support | Standard configuration not available, can be added upon customer request |
| Maximum temperature | 93°C (200°F) |
| Dimensions W x H x D | Airflow | Rated Initial Resistance | |||
|---|---|---|---|---|---|
| (Inch) | (mm) | (m³/h) | (CFM) | (Pa) | (in. w.g.) |
| 12 x 24 x 1 | 289 x 594 x 23 | 1,700 | 1,001 | 20 | 0.08 |
| 24 x 24 x 1 | 594 x 594 x 23 | 3,400 | 2,001 | 20 | 0.08 |
| 12 x 24 x 2 | 289 x 594 x 46 | 1,700 | 1,001 | 40 | 0.16 |
| 24 x 24 x 2 | 594 x 594 x 46 | 3,400 | 2,001 | 40 | 0.16 |
