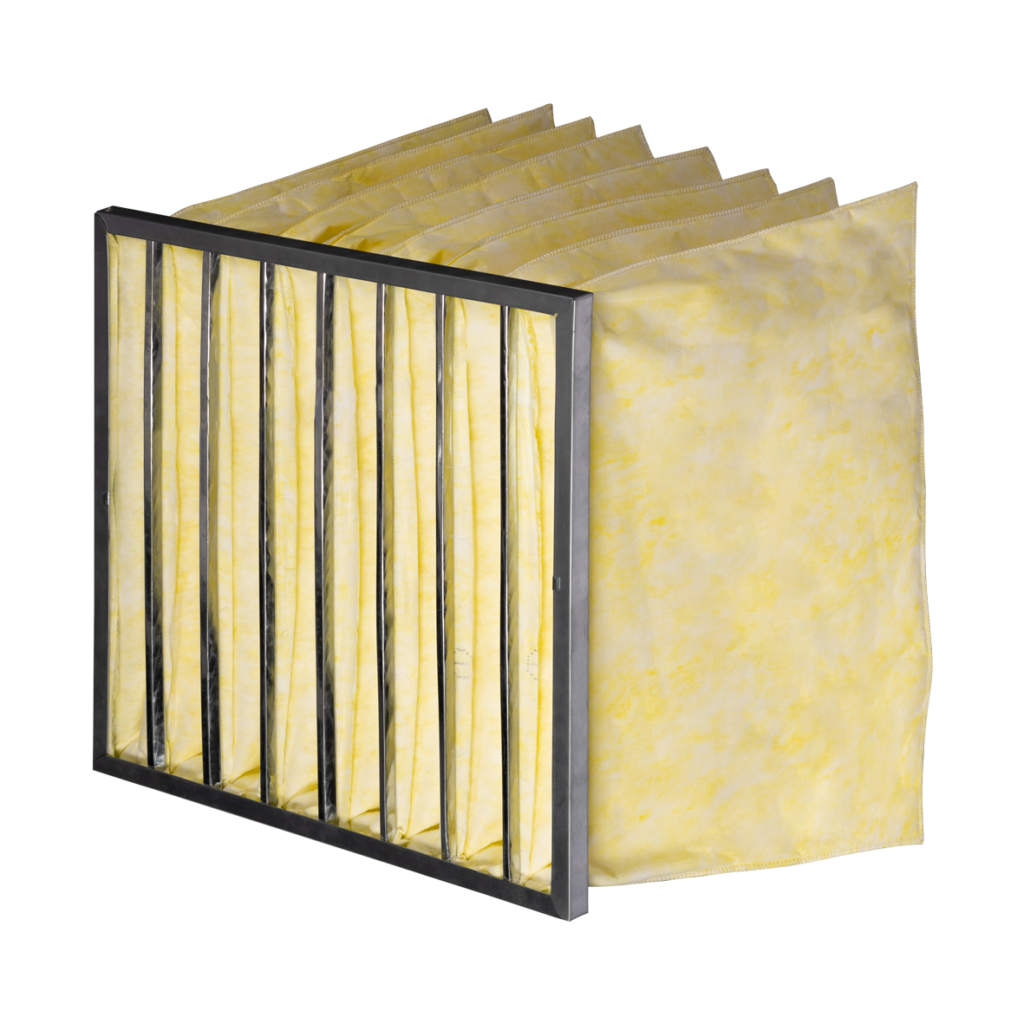

M-PACK

Pocket Filter

  • Sturdy all-metal frame structure
  • High dust holding capacity, low resistance
  • High-quality, fluffy, multi-layer synthetic fiber filter material
  • Ultrasonic seamless sealed bag structure
Request a Quote

M-PACK

Pocket Filter

  • Sturdy all-metal frame structure
  • High dust holding capacity, low resistance
  • High-quality, fluffy, multi-layer synthetic fiber filter material
  • Ultrasonic seamless sealed bag structure
Request a Quote

Applications

Commercial

Materials

Frame Double-layer U-shaped aluminum alloy / Galvanized iron sheet (GI)
Thickness 20mm / 21mm / 26mm / 47mm
Filter Material Synthetic fiber
Connection Angles Sturdy and high-temperature resistant ABS plastic corner / Aluminum corner
Reinforcement Support Galvanized steel strip

Applicable Conditions

Maximum temperature 60°C (140°F)

Specifications Table

Dimensions W x H x D Pocket Quantity (pcs) Filter Area Airflow Rated Initial Pressure Drop (Pa) Recommended Final Pressure Drop (Pa)
G3 G4 M5 M6 F7 F8 F9 G3 ~ G4 M5 ~ F9
(Inch) (m²) (m³/h) (CFM) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.) (Pa) (in. w.g.)
24 x 24 x 25 8 6.6 45 27 37 0.15 45 0.18 55 0.22 58 0.23 90 0.36 95 0.38 125 0.5 250 1 450 1.8
20 x 24 x 25 6 4.94 45 27 37 0.15 45 0.18 55 0.22 58 0.23 90 0.36 95 0.38 125 0.5 250 1 450 1.8
20 x 20 x 25 5 3.5 45 27 38 0.15 47 0.19 55 0.22 58 0.23 90 0.36 95 0.38 125 0.5 250 1 450 1.8
12 x 24 x 25 4 3.3 65 38 38 0.15 48 0.19 55 0.22 58 0.23 90 0.36 95 0.38 125 0.5 250 1 450 1.8
24 x 24 x 22 8 5.68 65 38 40 0.16 49 0.2 60 0.24 65 0.26 100 0.4 115 0.46 135 0.54 250 1 450 1.8
20 x 24 x 22 6 4.26 65 38 40 0.16 49 0.2 60 0.24 65 0.26 100 0.4 115 0.46 135 0.54 250 1 450 1.8
20 x 20 x 22 5 3.02 85 50 42 0.17 50 0.2 60 0.24 65 0.26 100 0.4 115 0.46 135 0.54 250 1 450 1.8
12 x 24 x 22 4 2.84 85 50 42 0.17 50 0.2 60 0.24 65 0.26 100 0.4 115 0.46 135 0.54 250 1 450 1.8
24 x 24 x 15 8 3.86 85 50 45 0.18 58 0.23 70 0.28 75 0.3 110 0.44 120 0.48 145 0.58 250 1 450 1.8
20 x 24 x 15 6 2.9 100 59 46 0.18 60 0.24 70 0.28 75 0.3 110 0.44 120 0.48 145 0.58 250 1 450 1.8
20 x 20 x 15 5 2.06 100 59 46 0.18 60 0.24 70 0.28 75 0.3 110 0.44 120 0.48 145 0.58 250 1 450 1.8
12 x 24 x 15 4 1.94 100 59 46 0.18 60 0.24 70 0.28 75 0.3 110 0.44 120 0.48 145 0.58 250 1 450 1.8

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
