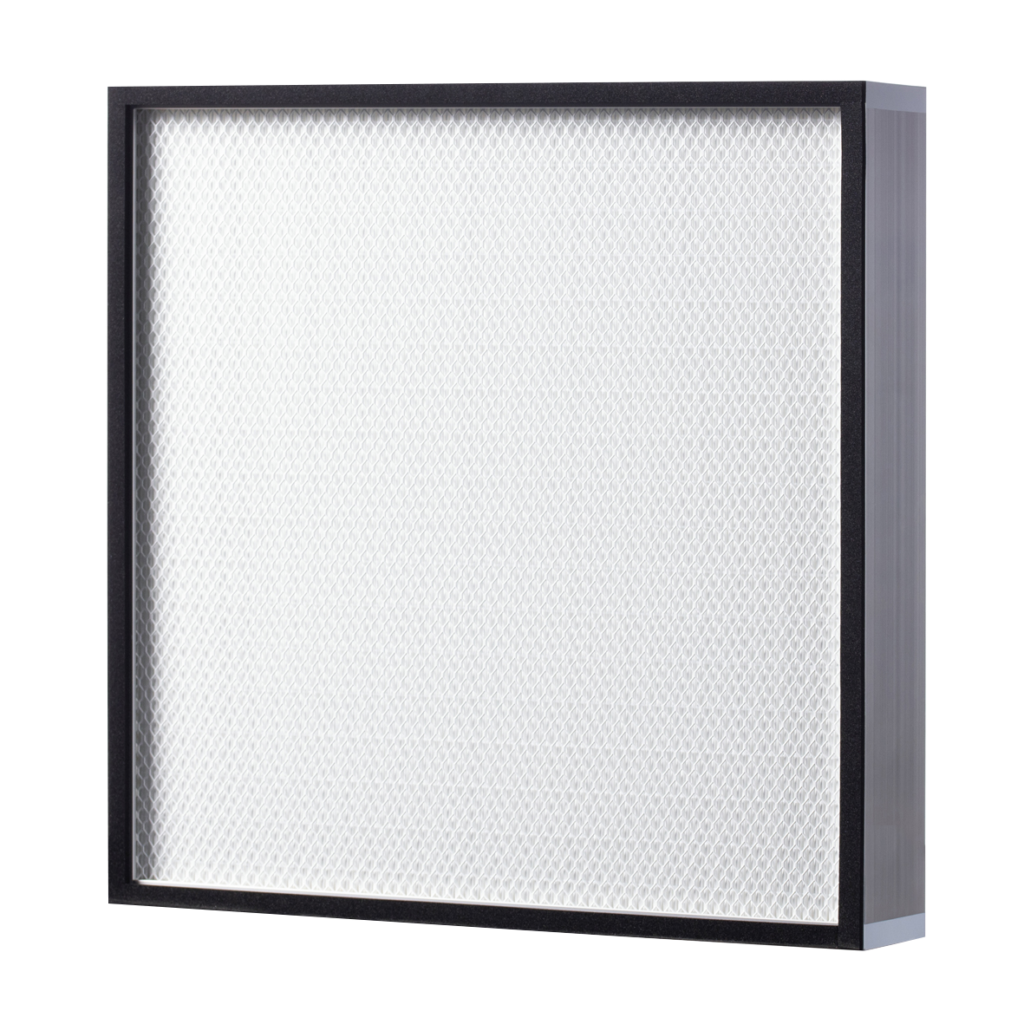

M-UII
Ultra-High Efficiency
Mini-Pleated Air Filter
Partitionless design to reduce operating costs
Wide application range, compact structure, saves storage space
Ultra-thin design saves installation space
Request a Quote
M-UII
Ultra-High Efficiency
Mini-Pleated Air Filter
Partitionless design to reduce operating costs
Wide application range, compact structure, saves storage space
Ultra-thin design saves installation space
Request a Quote
Applications
Commercial
Semiconductor
Pharmaceutical
Healthcare
Materials
Frame
Anodized aluminum profile
Thickness
50mm / 70mm / 90mm / 110mm
Filter material
Ultrafine glass fiber
Separator
Hot melt adhesive
Gasket
Polyurethane
Faceguard
Spray plastic steel mesh
Operating Conditions
Maximum temperature
70°C (158°F)
Specifications Table
Nominal Dimensions W x H x D (inch)
Actual Dimensions WxHxD (mm)
Faceguard
Airflow (m³/h)
Face Velocity (m/s)
Rated Initial Pressure Drop (Pa) U15
Rated Initial Pressure Drop (Pa) U16
23 x 23 x 2
570 x 570 x 50
Double sided
370
0.35
135
148
47 x 23 x 2
1170 x 570 x 50
Double sided
780
0.35
135
148
24 x 12 x 2
610 x 305 x 50
Double sided
200
0.35
135
148
24 x 24 x 2
610 x 610 x 50
Double sided
420
0.35
135
148
30 x 24 x 2
762 x 610 x 50
Double sided
540
0.35
135
148
36 x 24 x 2
915 x 610 x 50
Double sided
650
0.35
135
148
47 x 35 x 2
1170 x 870 x 50
Double sided
1,200
0.35
135
148
47 x 47 x 2
1170 x 1170 x 50
Double sided
1,640
0.35
135
148
23 x 23 x 2.8
570 x 570 x 70
Double sided
470
0.45
120
140
47 x 23 x 2.8
1170 x 570 x 70
Double sided
1,000
0.45
120
140
24 x 12 x 2.8
610 x 305 x 70
Double sided
260
0.45
120
140
24 x 24 x 2.8
610 x 610 x 70
Double sided
550
0.45
120
140
30 x 24 x 2.8
762 x 610 x 70
Double sided
690
0.45
120
140
36 x 24 x 2.8
915 x 610 x 70
Double sided
830
0.45
120
140
47 x 35 x 2.8
1170 x 870 x 70
Double sided
1,550
0.45
120
140
47 x 47 x 2.8
1170 x 1170 x 70
Double sided
2,100
0.45
120
140
23 x 23 x 4
570 x 570 x 90
Double sided
470
0.45
90
110
47 x 23 x 4
1170 x 570 x 90
Double sided
1,000
0.45
90
110
24 x 12 x 4
610 x 305 x 90
Double sided
260
0.45
90
110
24 x 24 x 4
610 x 610 x 90
Double sided
550
0.45
90
110
30 x 24 x 4
762 x 610 x 90
Double sided
690
0.45
90
110
36 x 24 x 4
915 x 610 x 90
Double sided
830
0.45
90
110
47 x 35 x 4
1170 x 870 x 90
Double sided
1,550
0.45
90
110
47 x 47 x 4
1170 x 1170 x 90
Double sided
2,100
0.45
90
110
23 x 23 x 5
570 x 570 x 110
Double sided
470
0.45
70
85
47 x 23 x 5
1170 x 570 x 110
Double sided
1,000
0.45
70
85
24 x 12 x 5
610 x 305 x 110
Double sided
260
0.45
70
85
24 x 24 x 5
610 x 610 x 110
Double sided
550
0.45
70
85
30 x 24 x 5
762 x 610 x 110
Double sided
690
0.45
70
85
36 x 24 x 5
915 x 610 x 110
Double sided
830
0.45
70
85
47 x 35 x 5
1170 x 870 x 110
Double sided
1,550
0.45
70
85
47 x 47 x 5
1170 x 1170 x 110
Double sided
2,100
0.45
70
85
Nominal Dimensions W x H x D (inch)
Actual Dimensions WxHxD (mm)
Faceguard
Airflow (m³/h)
Face Velocity (m/s)
Rated Initial Pressure Drop (Pa) U15
Rated Initial Pressure Drop (Pa) U16
Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
