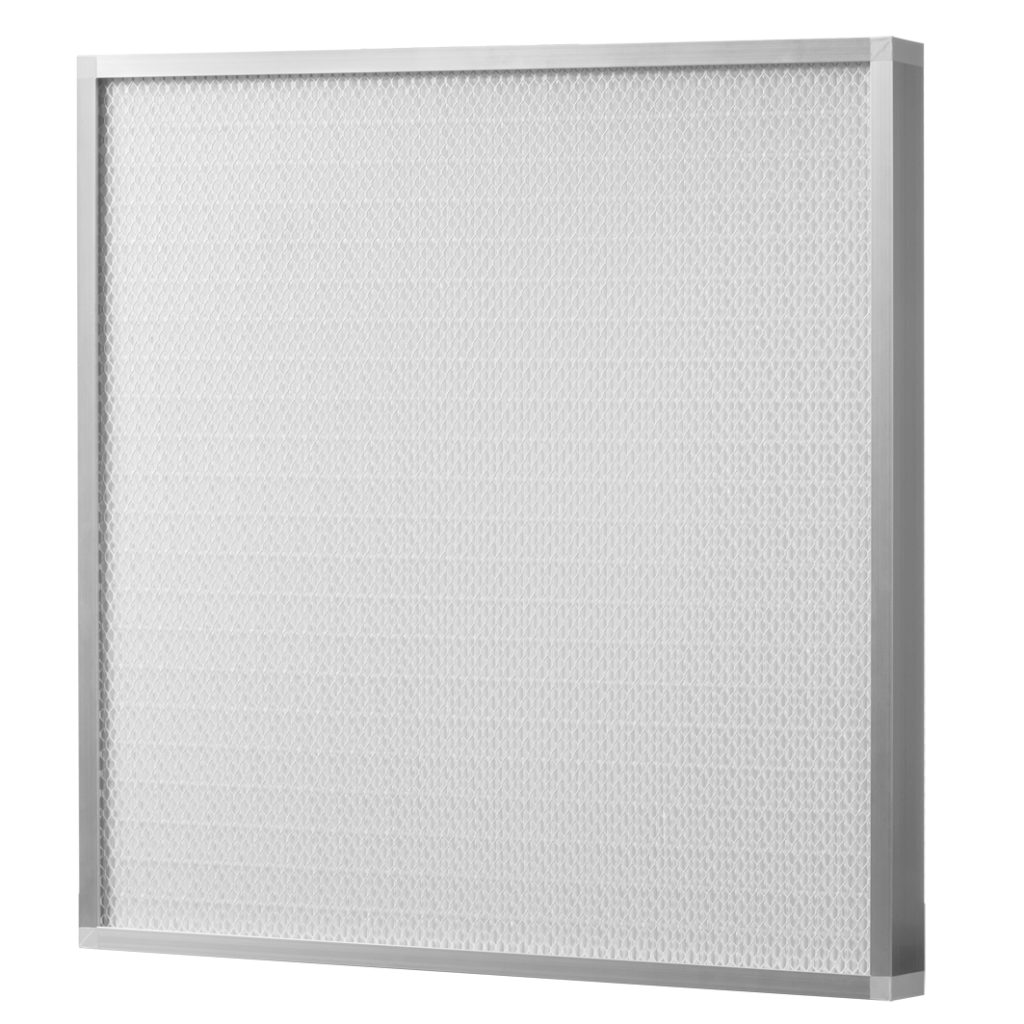

M-UII (PTFE)

Ultra-High Efficiency Mini-Pleated Air Filter

Combines ultra-high efficiency with ultra-low resistance, providing outstanding PTFE filter paper
Low energy consumption - energy saving exceeding 40%
Strong resistance to environmental corrosion
Extremely low dispersion of chemical gases
High strength filter paper, withstands collisions during transportation and installation
Smaller size, lighter weight, space-saving

M-UII (PTFE)

Ultra-High Efficiency Mini-Pleated Air Filter

Combines ultra-high efficiency with ultra-low resistance, providing outstanding PTFE filter paper
Low energy consumption - energy saving exceeding 40%
Strong resistance to environmental corrosion
Extremely low dispersion of chemical gases
High strength filter paper, withstands collisions during transportation and installation
Smaller size, lighter weight, space-saving

Applications

Commercial

Semiconductor

Materials

Frame	Anodized aluminum profile
Thickness	30mm / 50mm / 70mm
Filter material	PTFE composite filter material
Gasket	Polyurethane
Faceguard	Spray plastic steel mesh

Applicable Conditions

Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) U15	Rated Initial Pressure Drop (Pa) U16	Rated Initial Pressure Drop (Pa) U17
23 x 23 x 1	570 x 570 x 30	0.35	94	115	152
23 x 47 x 1	570 x 1170 x 30	0.35	94	115	152
47 x 47 x 1	1170 x 1170 x 30 (with reinforcement rib)	0.35	94	115	152
23 x 23 x 2	570 x 570 x 50	0.45	81	99	130
23 x 47 x 2	570 x 1170 x 50	0.45	81	99	130
47 x 47 x 2	1170 x 1170 x 50 (with reinforcement rib)	0.45	81	99	130
23 x 23 x 2.8	570 x 570 x 70	0.45	49	59	78
23 x 47 x 2.8	570 x 1170 x 70	0.45	49	59	78
47 x 47 x 2.8	1170 x 1170 x 70 (with reinforcement rib)	0.45	49	59	78
Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) U15	Rated Initial Pressure Drop (Pa) U16	Rated Initial Pressure Drop (Pa) U17

Specifications Table

Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) U15	Rated Initial Pressure Drop (Pa) U16	Rated Initial Pressure Drop (Pa) U17
23 x 23 x 1	570 x 570 x 30	0.35	94	115	152
23 x 47 x 1	570 x 1170 x 30	0.35	94	115	152
47 x 47 x 1	1170 x 1170 x 30 (with reinforcement rib)	0.35	94	115	152
23 x 23 x 2	570 x 570 x 50	0.45	81	99	130
23 x 47 x 2	570 x 1170 x 50	0.45	81	99	130
47 x 47 x 2	1170 x 1170 x 50 (with reinforcement rib)	0.45	81	99	130
23 x 23 x 2.8	570 x 570 x 70	0.45	49	59	78
23 x 47 x 2.8	570 x 1170 x 70	0.45	49	59	78
47 x 47 x 2.8	1170 x 1170 x 70 (with reinforcement rib)	0.45	49	59	78
Nominal Dimensions W x H x D (inch)	Actual Dimensions WxHxD (mm)	Face Velocity (m/s)	Rated Initial Pressure Drop (Pa) U15	Rated Initial Pressure Drop (Pa) U16	Rated Initial Pressure Drop (Pa) U17

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request

Downloads

217 KB

35 MB
