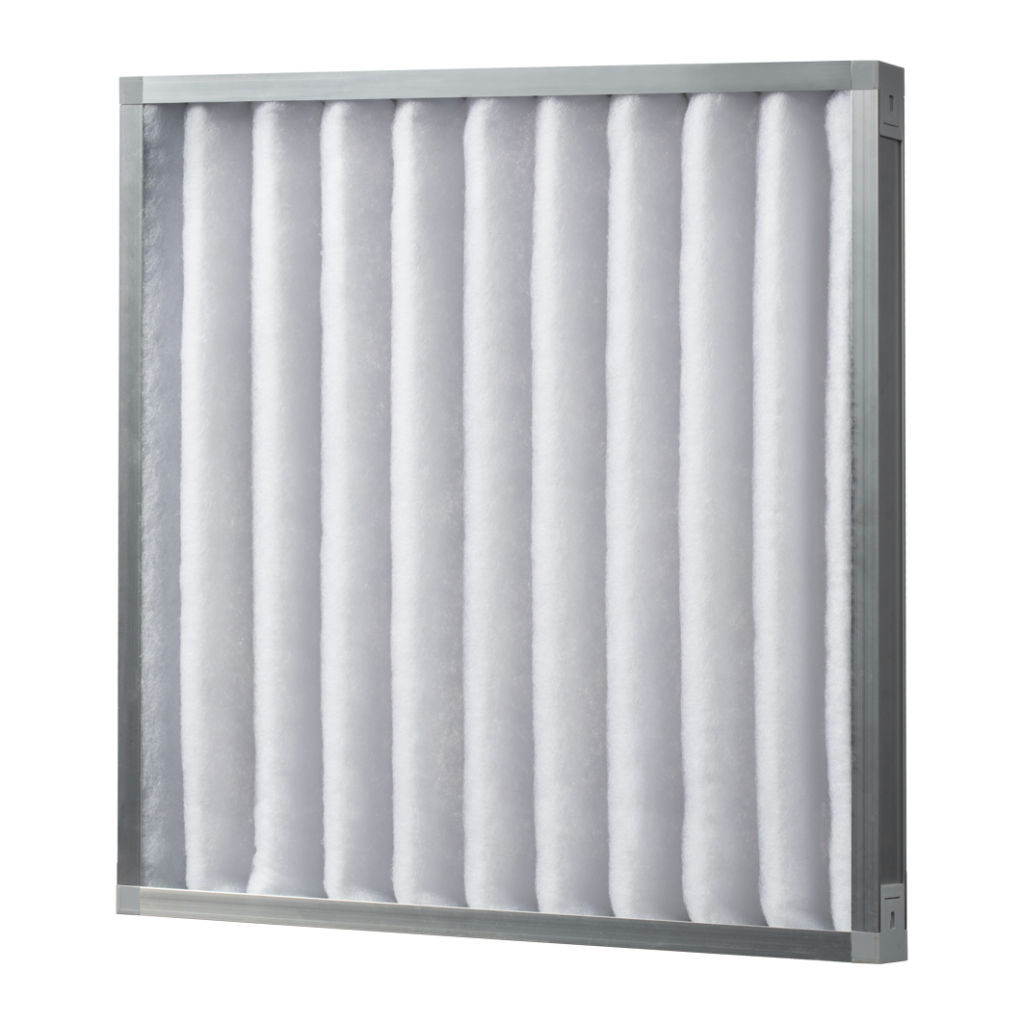

M-WASH

Washable Panel Filter

Removable frame design
High-quality filter material, washable
High dust holding capacity
M-WASH panel reinforced ribbed pre-filter adopts a lightweight panel structure, high-quality polyester synthetic fibers, high dust holding capacity, good fire resistance

M-WASH

Washable Panel Filter

Removable frame design
High-quality filter material, washable
High dust holding capacity
M-WASH panel reinforced ribbed pre-filter adopts a lightweight panel structure, high-quality polyester synthetic fibers, high dust holding capacity, good fire resistance

Applications

Commercial

Materials

Frame	Aluminum alloy
Thickness	46mm / 96mm
Filter Material	High-quality mesh-covered polyester synthetic fiber
Connection Angles	Sturdy and high-temperature resistant ABS plastic corner / Aluminum corner
Reinforcement Support	Galvanized steel strip

Applicable Conditions

Maximum temperature

93°C (200°F)

Specifications Table

Dimensions W x H x D		Efficiency	Rated Airflow		Initial Pressure Drop at Different Airflows						Recommended Final Pressure Drop (Pa)
Dimensions W x H x D		Efficiency	Rated Airflow		70%		100%		140%
(Inch)	(mm)	(EN 779)	(m³/h)	(CFM)	(Pa)	(in.w.g.)	(Pa)	(in.w.g.)	(Pa)	(in.w.g.)
12 x 24 x 2	289 x 594 x 46	G2	1,700	1,001	45	0.18	70	0.28	100	0.40	Initial pressure drop 2 to 2.5 times
20 x 24 x 2	492 x 594 x 46	G2	2,800	1,648	45	0.18	70	0.28	100	0.40
24 x 24 x 2	594 x 594 x 46	G2	3,400	2,001	45	0.18	70	0.28	100	0.40
12 x 24 x 2	289 x 594 x 46	G3	1,700	1,001	65	0.26	95	0.38	135	0.54
20 x 24 x 2	492 x 594 x 46	G3	2,800	1,648	65	0.26	95	0.38	135	0.54
24 x 24 x 2	594 x 594 x 46	G3	3,400	2,001	65	0.26	95	0.38	135	0.54
12 x 24 x 2	289 x 594 x 46	G4	1,700	1,001	85	0.34	130	0.52	175	0.70
20 x 24 x 2	492 x 594 x 46	G4	2,800	1,648	85	0.34	130	0.52	175	0.70
24 x 24 x 2	594 x 594 x 46	G4	3,400	2,001	85	0.34	130	0.52	175	0.70
12 x 24 x 2	289 x 594 x 46	M5	1,700	1,001	100	0.40	140	0.56	205	0.82
20 x 24 x 2	492 x 594 x 46	M5	2,800	1,648	100	0.40	140	0.56	205	0.82
24 x 24 x 2	594 x 594 x 46	M5	3,400	2,001	100	0.40	140	0.56	205	0.82

Remark:
1. Initial resistance performance tolerance is ±10%
2. Special dimensions available upon request
